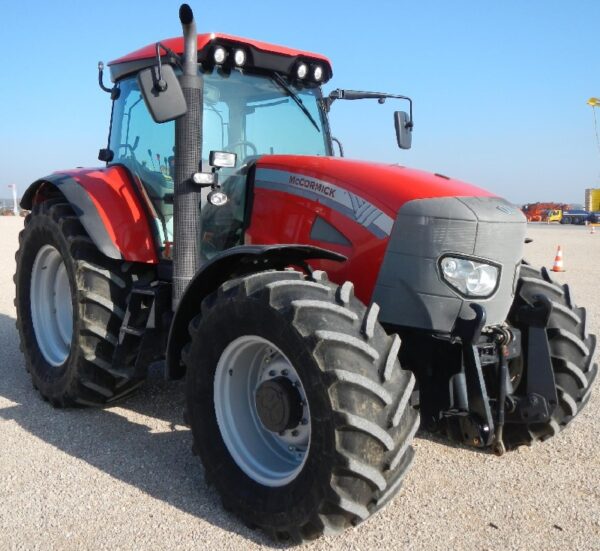

Description
Manufacturer: McCormick International
Model: XTX165
Year: 2008
Type: 4WD MFWD (Mechanical Front Wheel Drive) Tractor
Weight: 14,330 lbs [6500 kg]
Wheelbase: 108 inches [274 cm]
Dimensions:
Length: 205 inches [520 cm]
Width: 98 inches [248 cm]
Height (cab): 114 inches [289 cm]
Ground Clearance: 20 inches [50 cm]
Engine

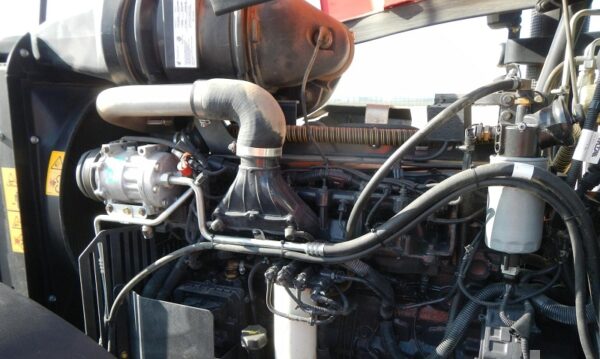

Model: Beta Power 6-cylinder turbocharged diesel
Displacement: 410.6 ci [6.7 L]
Valves: 24
Aspiration: Turbocharged with electronic high-pressure common-rail fuel injection
Power Output: 162 hp [120.8 kW] (ISO)
PTO Power (claimed): 147 hp [109.6 kW]
Torque: 538 lb-ft [729.5 Nm]

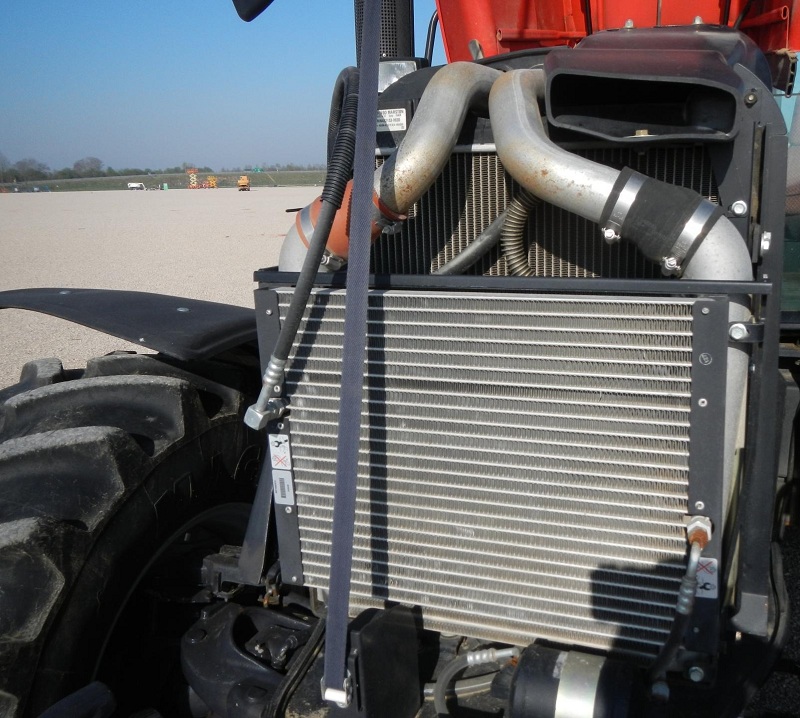

Cooling: Liquid-cooled
Fuel Tank Capacity: 79 gal [299.0 L]
Transmission

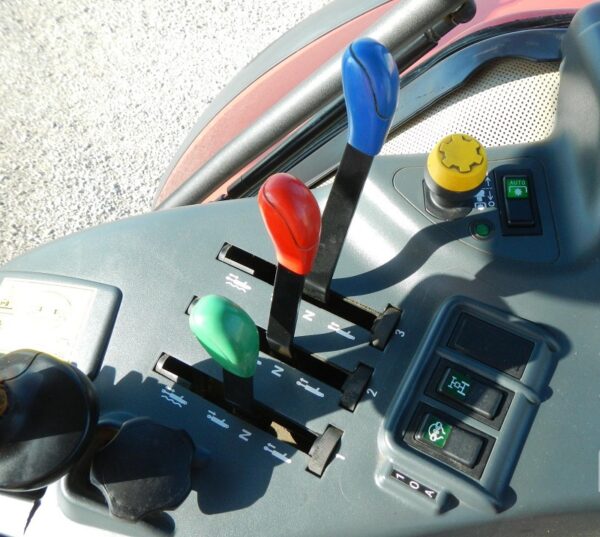

Type: XtraSpeed partial power shift
Gears: 32 forward and 24 reverse (4 ranges with 8 powershift speeds each)
Features: Power shuttle with hydraulic reverse shuttle for smooth direction changes under load
Speed: Maximum travel speed approx. 40 km/h

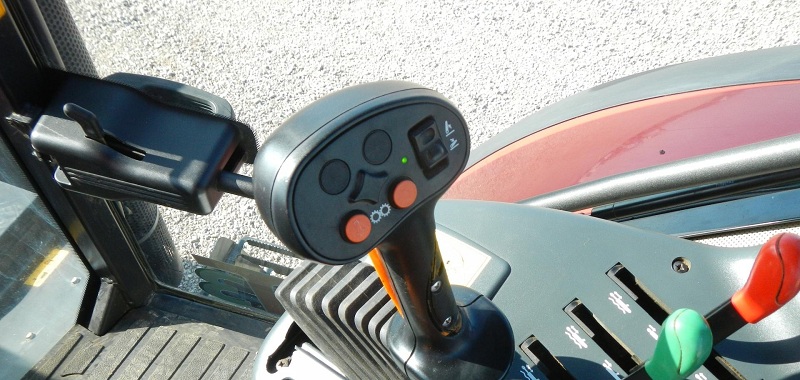

Electronic range shifting (E-PLUS version) with joystick control, skip shift, and autoroading functions
Hydraulics
Type: Closed center hydraulic system with variable displacement pump
Total Flow: 29 gpm [109.8 lpm]

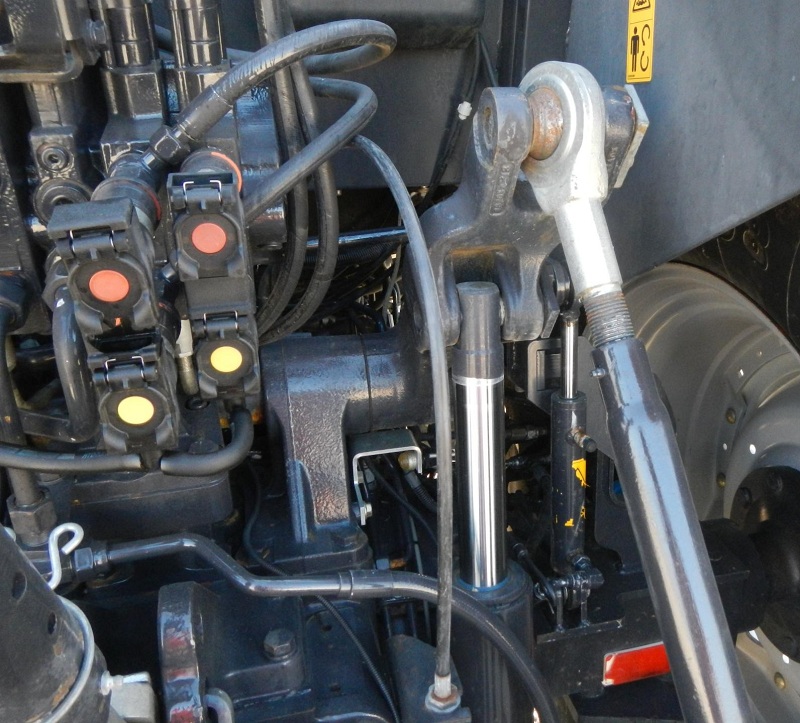

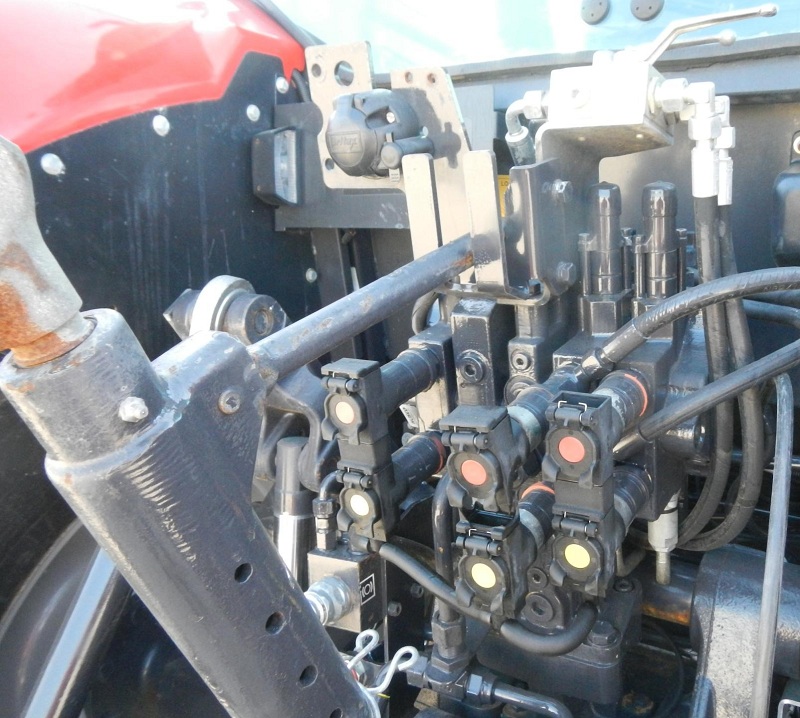

Valves: 1 to 5 auxiliary valves, mechanically or electro-hydraulically operated depending on version

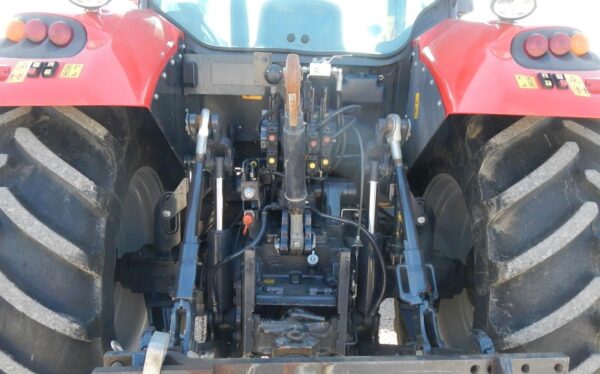

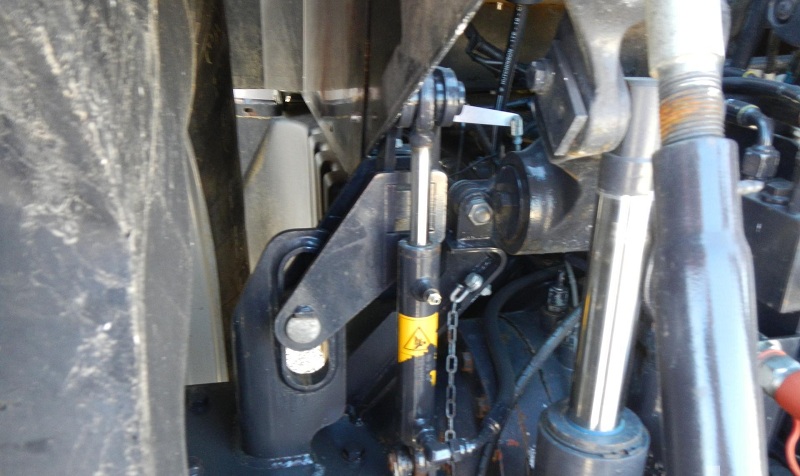

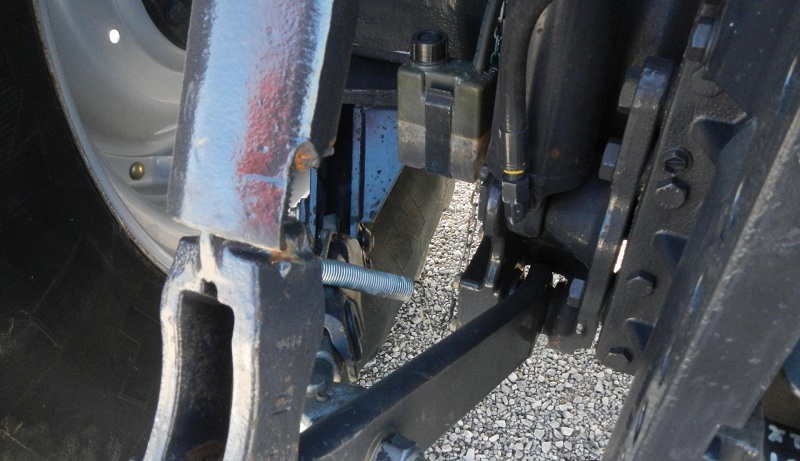

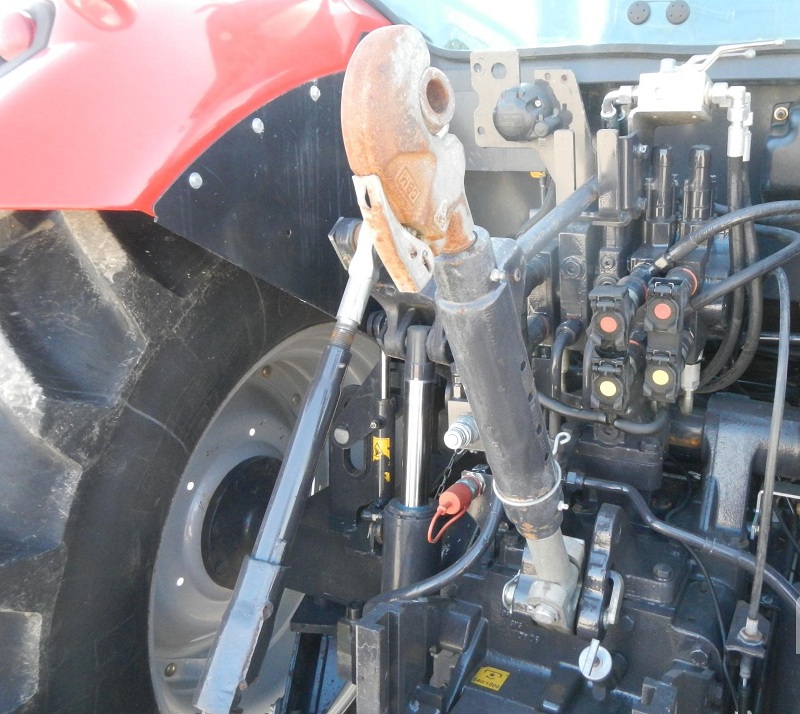

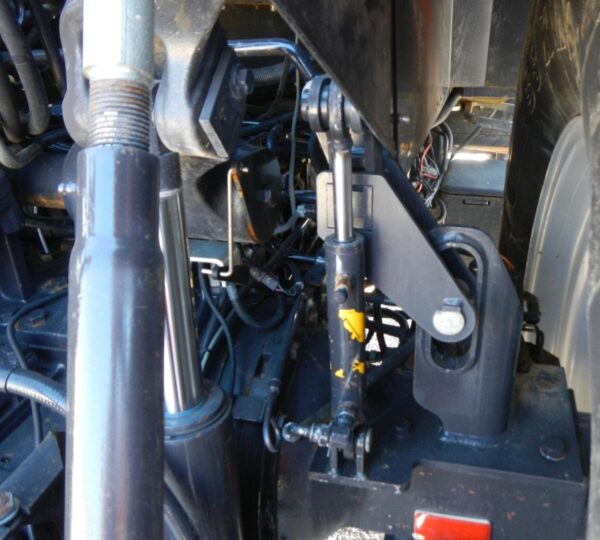

3-Point Hitch: Category II/III with electronic power lift control
Rear Lift Capacity: 17,637 lbs [8000 kg]

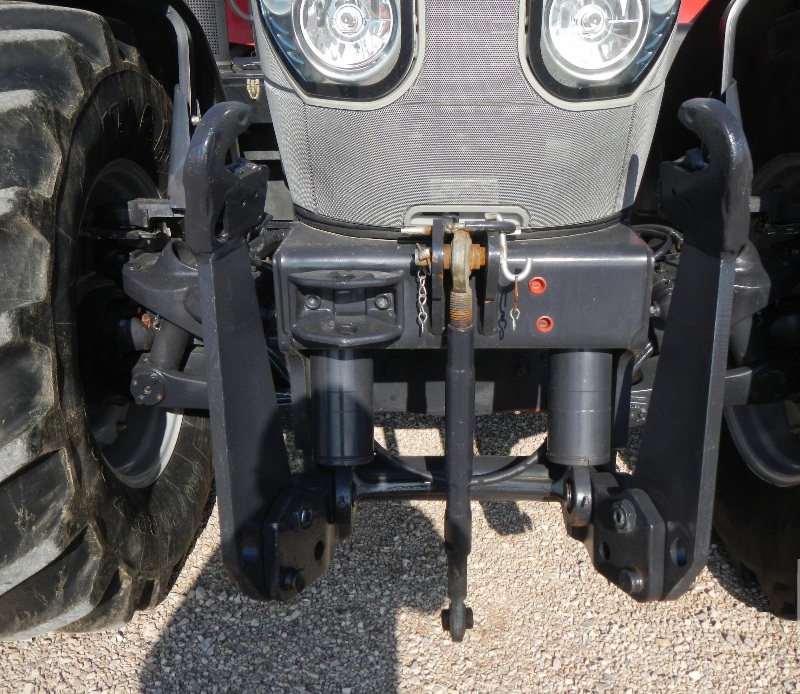

Front Hitch (optional): Available with lift capacity approx. 3500 kg
Power Take-Off (PTO)
Rear PTO: Independent electrohydraulic multi-disc wet clutch
Speeds: 540 / 1000 rpm
Front PTO: Optional 1000 rpm
Chassis and Brakes
Drive: 4×4 MFWD with electronically controlled front axle suspension (optional)
Brakes: Wet disc annular piston brakes with 6 discs, servo-assisted braking booster system

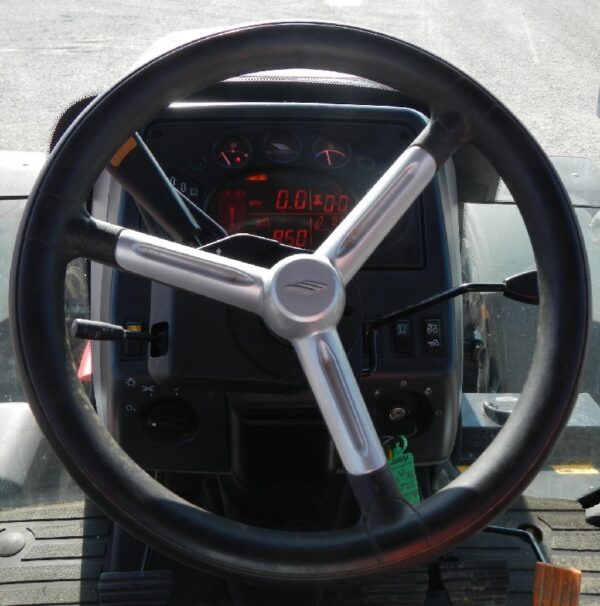

Steering: Hydrostatic power steering with max steering angle 55° for tight maneuvering
Automatic 4WD engagement: On braking for improved traction

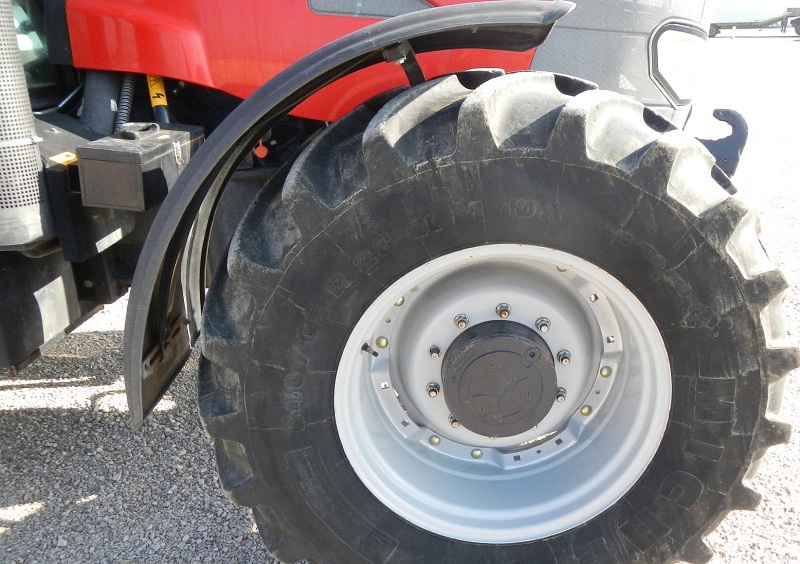

Tires

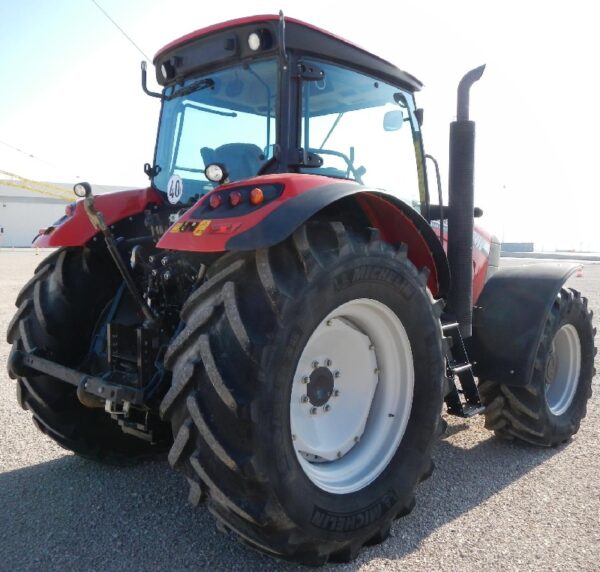

Rear Tires: 600/65R38 agricultural tires

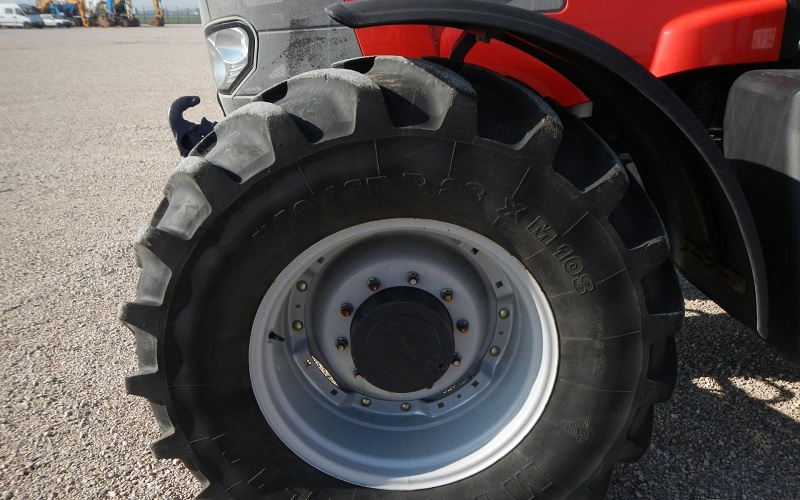

Front Tires: Typically 520/85R38 or equivalent, depending on configuration
Cab and Comfort

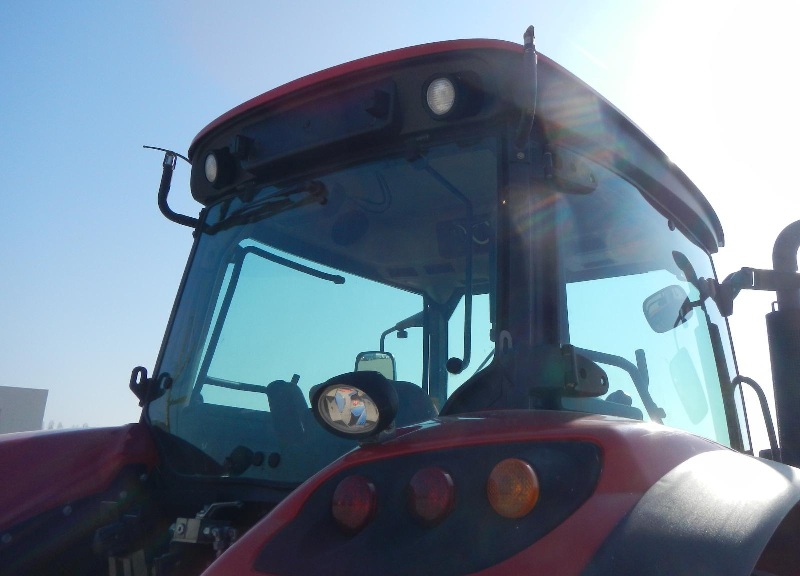

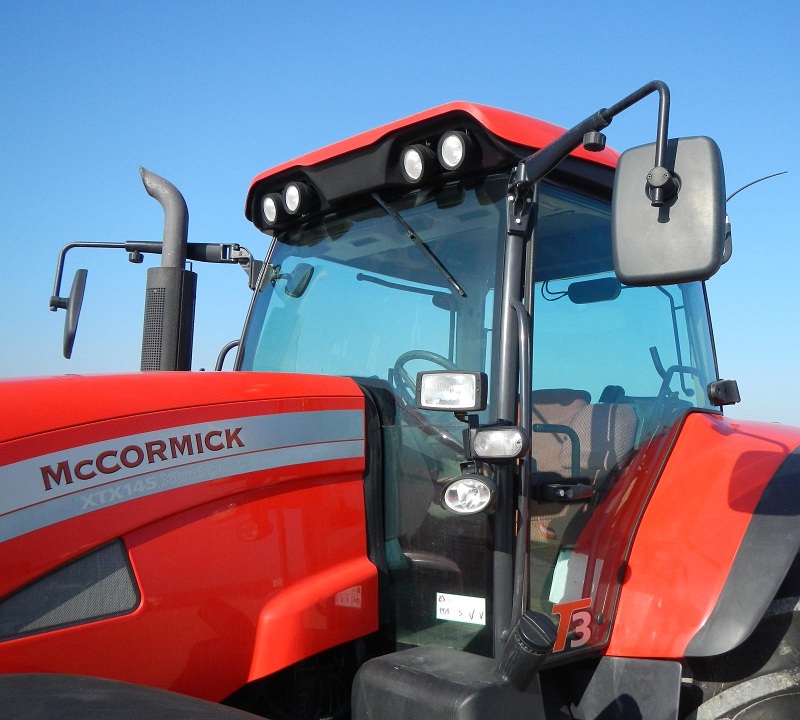

Cab: Four-post design with large rear-hinged doors for excellent visibility
Suspension: Hydraulic cab suspension optional for enhanced operator comfort

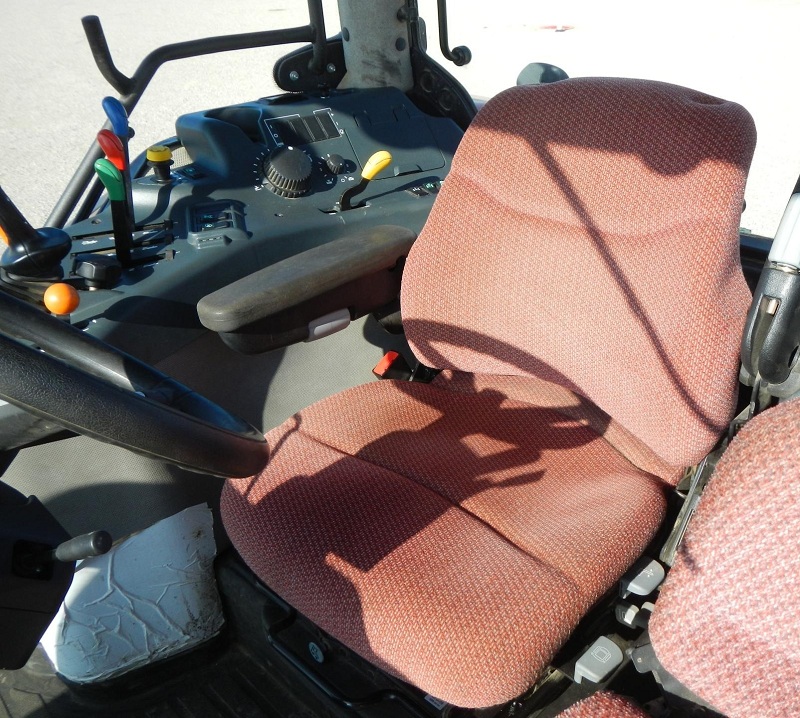

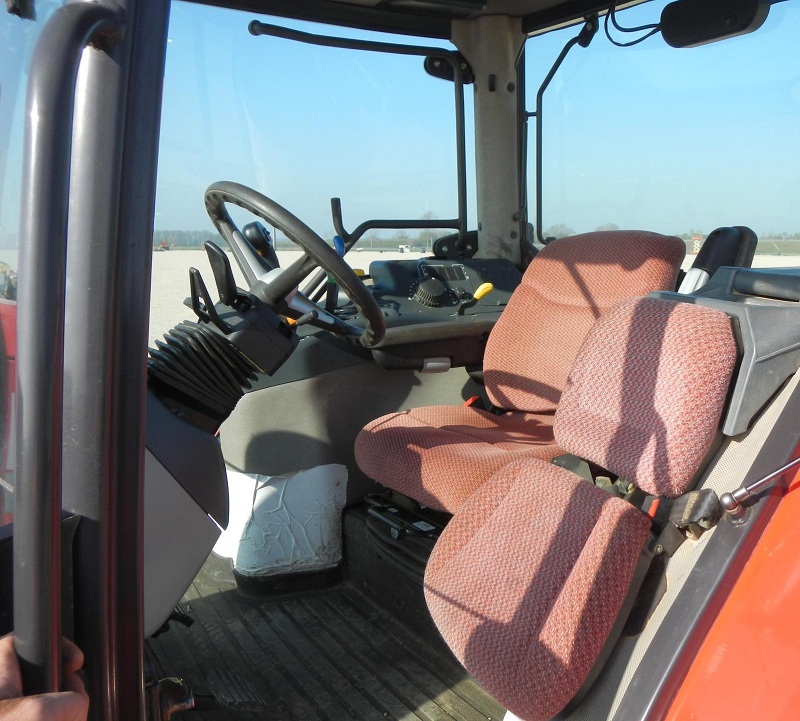

Seat: Pneumatic suspension seat with multi-function armrest (E-PLUS version)
Climate Control: Air conditioning standard

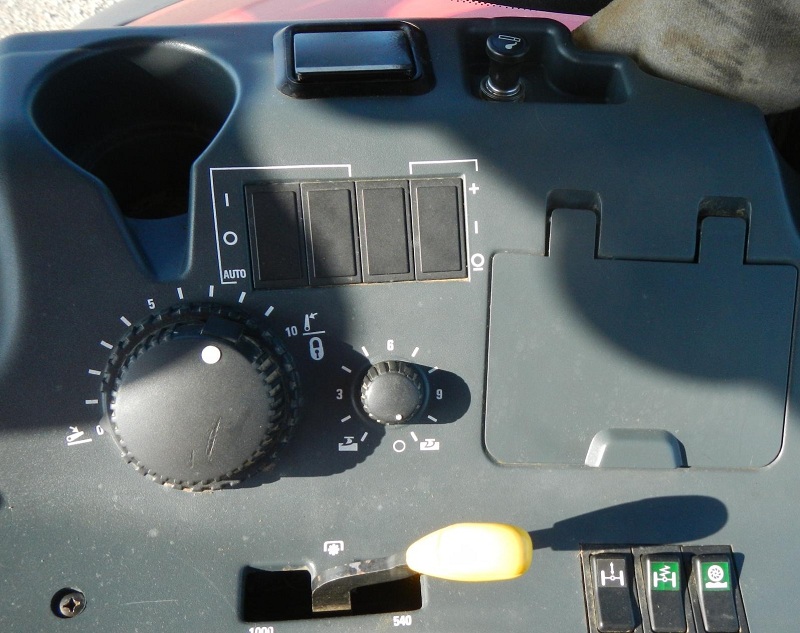

Controls: Ergonomically arranged with electronic joystick for transmission and hydraulic functions (E-PLUS version)
Additional Features
Power Management System: Automatically increases engine power and torque at PTO under load by approx. 10 hp for enhanced productivity

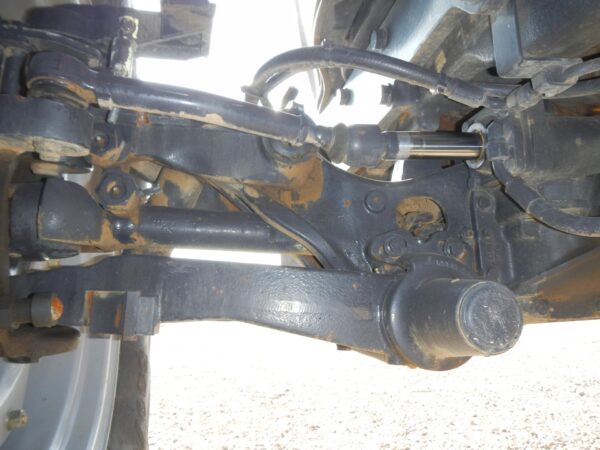

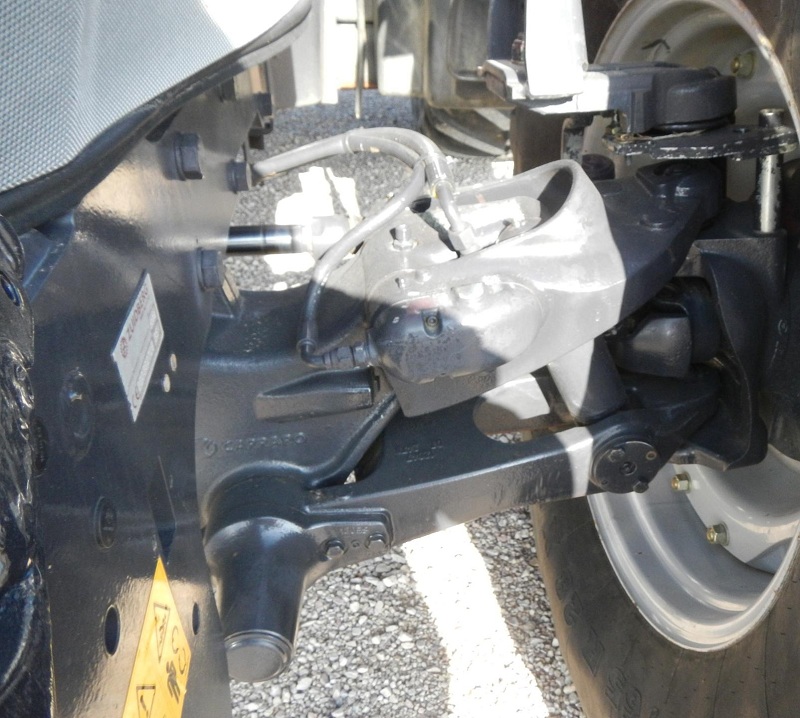

Front Axle Suspension: Electronically controlled hydraulic suspension improves ride quality and traction without compromising ground clearance
Serviceability: Fully tilting hood for easy engine access and maintenance

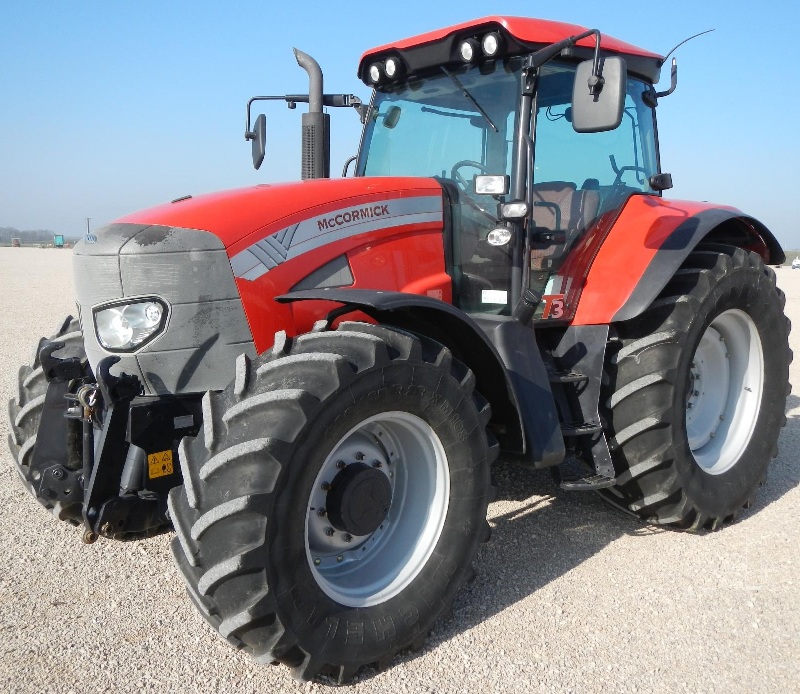

This 2008 McCormick XTX165 is a high-performance, versatile tractor designed for demanding agricultural tasks. Its robust 6.7L turbocharged engine delivers strong power and torque, complemented by a sophisticated XtraSpeed transmission offering a wide range of speeds and smooth shifting. The advanced hydraulic system and high lift capacity enable efficient operation of heavy implements. Operator comfort is maximized with a spacious, climate-controlled cab featuring suspension and ergonomic controls. The tractor’s durable construction, combined with modern electronics and power management, ensures excellent productivity and fuel efficiency in the field.
