Description
Manufacturer: JOHN DEERE
Model: 5080M 4WD
Year: 2011

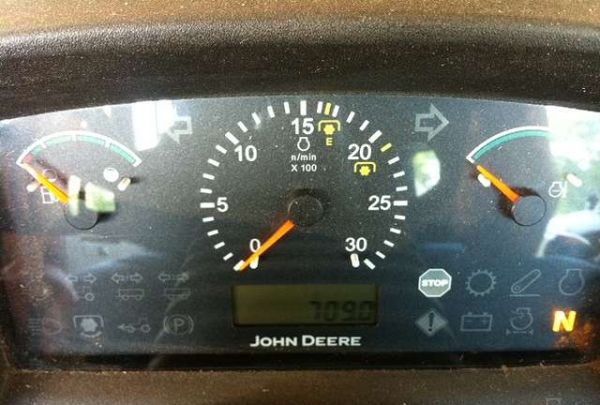

Hours: 709 (Low Meter Hours)
Condition: Excellent, lightly used
Includes: Front weights, air-conditioned cab, 2 double-acting hydraulic outlets
Engine Details
Engine Model: John Deere 4045HL286
Type: Turbocharged, liquid-cooled, 4-cylinder diesel
Displacement: 276 ci [4.5 L]
Bore x Stroke: 4.19 x 5.00 inches [106 x 127 mm]
Emissions: Tier III compliant
Rated Power: 80 hp [59.7 kW] at 2200 rpm
Max Power: 81.5 hp [60.8 kW]
Torque: 249 lb-ft [337.6 Nm] at 1600 rpm
Compression Ratio: Approx. 17.5:1
Air Cleaner: Dual paper element
Starter: 12 volts electric
Transmission
Type: John Deere Power Reverser Plus, two-speed power shift
Speeds: 32 forward / 16 reverse
Clutch: Electro-hydraulic wet disc
Max Speed: 40 km/h
Drive: 4WD with electro-hydraulic rear differential lock
Steering: Hydrostatic power steering
Brakes: Wet disc, optional hydraulic or pneumatic trailer brakes
Hydraulics & PTO
Hydraulic System: Open center, 2901 psi [200 bar] pressure
Pump Flow: 19.55 gpm [74 lpm] standard, optional 24.8 gpm [93.9 lpm]
Rear Valves: Up to 3 maximum
Mid Valves: Up to 2 maximum
Rear 3-Point Hitch: Category II, mechanical lower-link draft control standard, electronic optional
Rear Lift Capacity: 8093 lbs [3670 kg] at lift ends
Front Hitch (optional): Category II, lift capacity 6519 lbs [2957 kg]
Rear PTO: Independent electro-hydraulic wet clutch
Rear PTO Speeds: 540 / 540E / 1000 rpm
Front PTO: Independent, 1000 rpm (optional)
Tires & Dimensions
Front Tires: 340/85R24 (equivalent to approx. 13.6R24)
Rear Tires: 420/85R34 (equivalent to approx. 16.9R34)
Wheelbase: 88.6 inches [225 cm]
Operating Weight: Approx. 8157 lbs [3700 kg]
Length: 395 cm [155.5 inches]
Width: 218 cm [85.8 inches]
Height (Cab): 260 cm [102.4 inches]
Additional Features

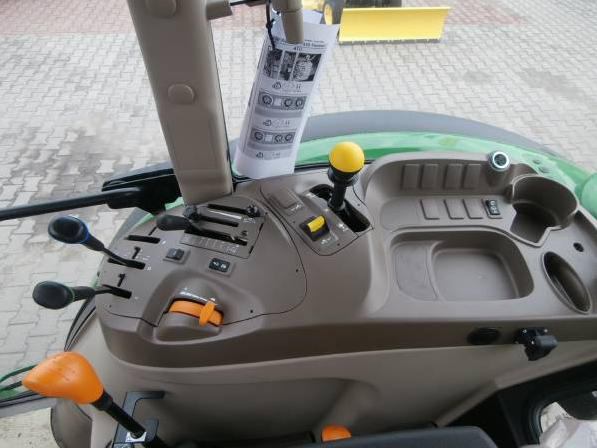

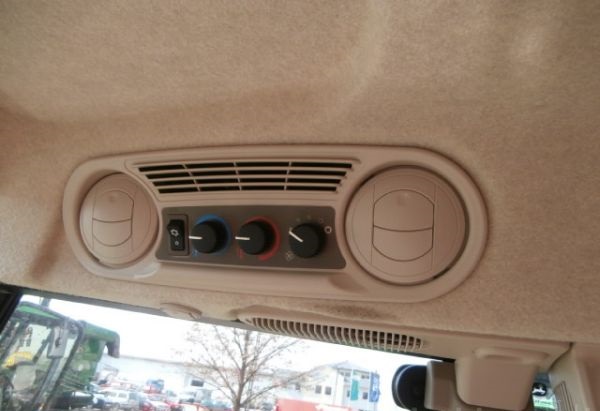

Cab: Fully enclosed with air conditioning for operator comfort
Hydraulic Outlets: 2 double-acting (D/A) outlets
Front Weights: Included for improved balance and traction
Low Hours: Only 709 hours, indicating minimal use and excellent condition
This 2011 John Deere 5080M 4WD tractor combines a robust 4.5L turbocharged diesel engine with a sophisticated Power Reverser Plus transmission, delivering reliable 80 hp performance with efficient fuel use. Its comprehensive hydraulic system supports multiple spool valves and strong 3-point hitch lift capacities, suitable for a wide range of agricultural implements. The tractor’s durable tires and balanced weight distribution, complemented by front weights and a spacious air-conditioned cab, ensure comfort and traction in diverse field conditions. With low meter hours and excellent maintenance, this unit is ready for immediate productive use.
