Description

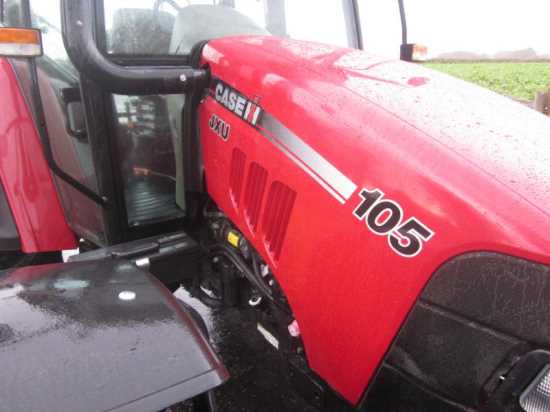

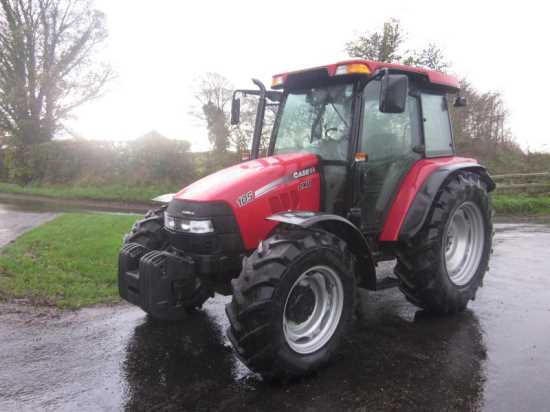

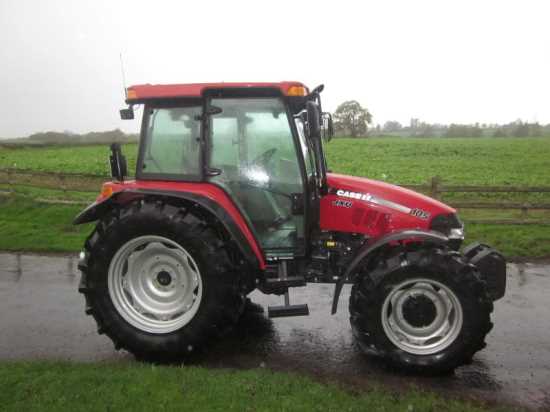

Manufacturer: CASE IH
Model: JXU 105
Year: 2010
Condition: Used – excellent condition

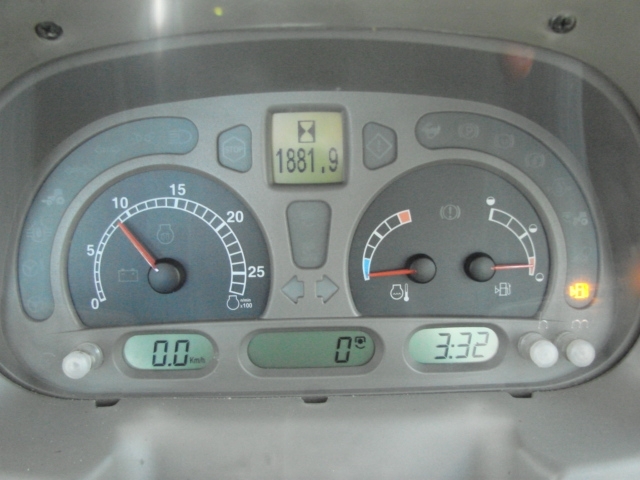

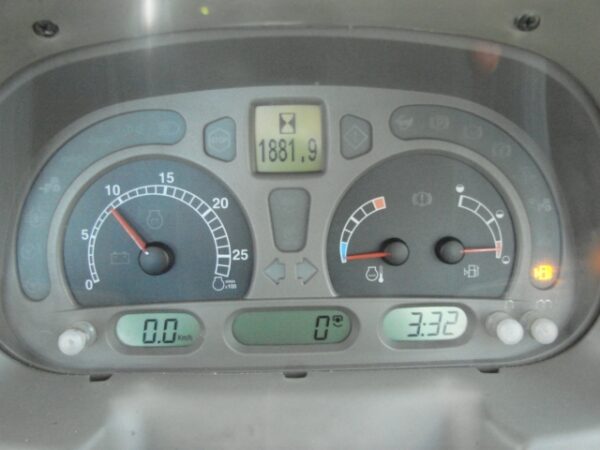

Hours of Use: 1880
Engine Details
Engine Model: Iveco 4.5L 4-cylinder turbocharged and intercooled diesel
Displacement: 4500 cm³ (4.5 L)
Power Output: 106 hp (78 kW) rated at 2300 rpm (ECE R120)
Maximum Torque: 425 Nm at 1400 rpm
Torque Rise: 31%
Emission Standard: Tier II compliant with internal EGR for lower emissions
Air Cleaner: Exhaust aspirated air filter with optional powercore filter for dusty conditions
Fuel Tank Capacity: 127 liters standard, optional 167 liters available
Cold Climate Features: Viscous fan drive for faster warm-up, grid heater integrated into cylinder head, high-capacity battery for cold starts down to -25°C
Transmission
Type: Powershuttle with 24 forward and 24 reverse speeds, including 2-speed powershift
Optional Transmission: 12 forward and 12 reverse speeds with mechanical shuttle, optional creeper gear for speeds as low as 200 m/h at rated engine speed
Maximum Speed: 40 km/h
Clutch: Electro-hydraulic
Drive: Standard 4WD with electro-hydraulic engagement and limited slip differential lock; fully locking differential optional
Hydraulics and PTO
Hydraulic Pump Flow: 16.1 gpm (60.9 lpm) total, with 9.5 gpm (36 lpm) dedicated to steering

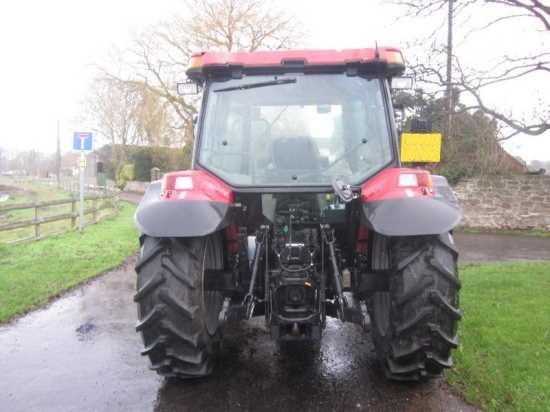

Rear 3-Point Hitch: Category II with lift capacity of 4900 kg standard, optional 5850 kg available
Front 3-Point Hitch: Lift capacity of 2500 kg
Rear PTO: Independent electro-hydraulic clutch, speeds 540/540E/1000 rpm
Front PTO: Independent, 1000 rpm
Tires and Dimensions
Front Tires: 320/85R24 (85% tread remaining)
Rear Tires: 420/85R34 (85% tread remaining)
Alternate Front Tire Size: 380/85R24 (as fitted)
Weight: Approximately 4249 kg (9369 lbs)
Wheelbase: 92.5 inches (234 cm)
Length: 162.2 inches (411 cm)
Width: 214 cm (transport width)
Height (ROPS): 107.9 inches (274 cm)
Ground Clearance: Approximately 45 cm
Additional Features

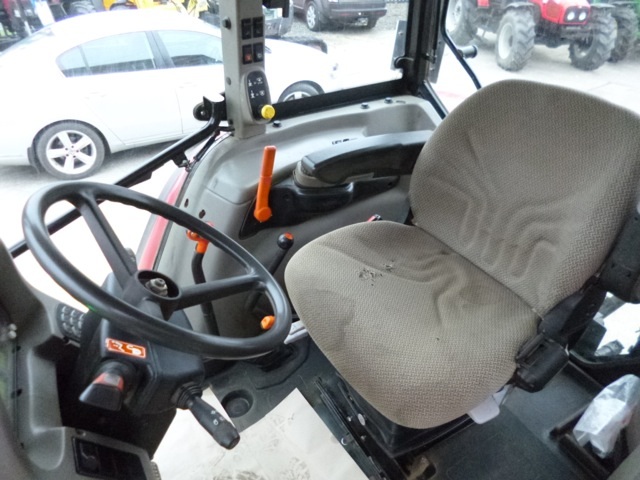

Cab/ROPS: Two-post folding ROPS standard, cab optional
Steering: Power steering with electro-hydraulic differential locks
Brakes: Wet disc brakes, optional hydraulic or pneumatic trailer brakes
Accessories: Air conditioning included

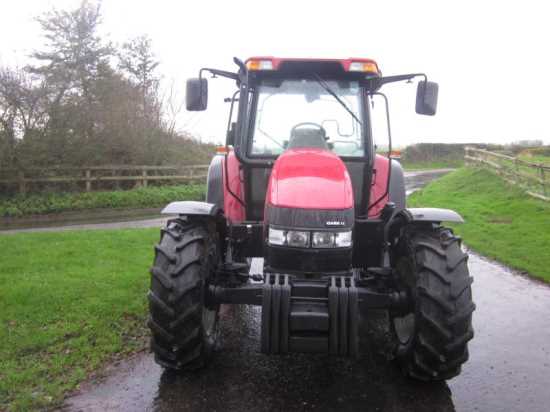

Front Weights: Included for improved balance and traction
This tractor is in excellent condition with low hours and well-maintained tires, making it a reliable and powerful machine for a wide range of agricultural tasks. The combination of a robust Iveco engine, versatile transmission options, and efficient hydraulics ensures high productivity and fuel economy. The air conditioning and front weights enhance operator comfort and machine stability respectively, making it as good as new with minimal use
